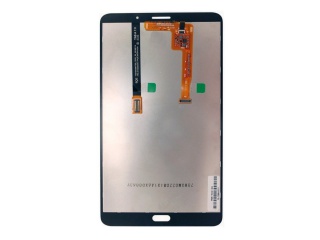

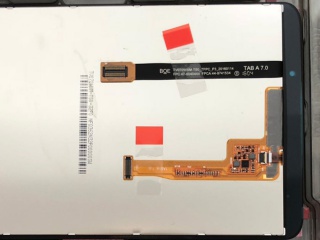

| PartNumber | TV070WXM-TS0 |
| Brand | BOE |
| Size | 7.0 |
| Application | Pad & Tablet |
| Resolution | 800×1280 |
| Composition | Assembly , a-Si TF |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | WLED , 20K hours , No Driver |
| Interface | |
| Manufacturer | BOE |
| Screen Size | 7.0 inch |
| Pixel Number | 800(RGB)×1280 (WXGA) 215PPI |
| Active Area(mm) | 94.2 × 150.72 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 400 (Typ.)(cd/m²) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 50% NTSC |
| Mass | 74.5g (Typ.) |
| Refresh Rate | 60Hz |
| Model Name | TV070WXM-TS0 |
| Screen Type | Assembly , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 104.557 × 182.85 × 5.18 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Work Mode | - |
| Response | 25 (Typ.)(Tr+Td) ms |
| Used for | Pad & Tablet |
| Touchscreen | On-Cell Touch |
