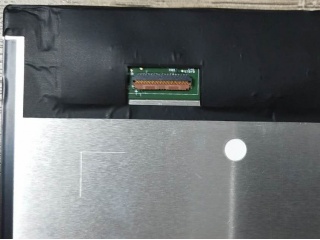

| PartNumber | TV080WUM-NK0 |
| Brand | BOE |
| Size | 8.0 |
| Application | Pad & Tablet |
| Resolution | 1200×1920 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 850:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Model | TV080WUM-NK0 |
| Diagonal Size | 8.0 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1200(RGB)×1920 [WUXGA] 283PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 107.64(H)×172.224(V) mm |
| Outline Dim. | - |
| Luminance | - |
| Contrast Ratio | 850:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 63% NTSC |
| Light Source | WLED |
| Weight | - |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | - |
| Interface Type | MIPI (4 data lanes) , 39 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
