| PartNumber | TV080WXM-LL3 |
| Brand | BOE |
| Size | 8.0 |
| Application | Pad & Tablet |
| Resolution | 800×1280 |
| Composition | a-Si TFT-LCD, Assemb |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Model | TV080WXM-LL3 |
| Diagonal Size | 8.0 inch |
| Type | a-Si TFT-LCD, Assembly |
| Pixel Format | 800(RGB)×1280 [WXGA] 188PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 107.64(H)×172.224(V) mm |
| Outline Dim. | 116.9(H)×194.17(V) ×5.35(D) mm |
| Bezel Area | - |
| Treatment | Clear, Hard coating |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30(Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 60% NTSC |
| Light Source | WLED [5S4P] , W/O Driver |
| Weight | 150g (Typ.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | PCAP |

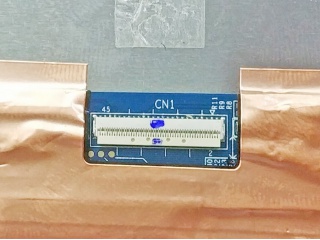

| Interface Type | MIPI (4 data lanes) , 45 pins Connector |
| Power Supply | 1.8/6.0/-6.0/19/-11V (Typ.)(VDDI/AVDD/AVEE/VGH/VGL) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
