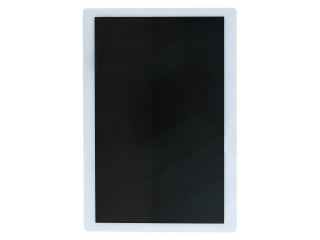

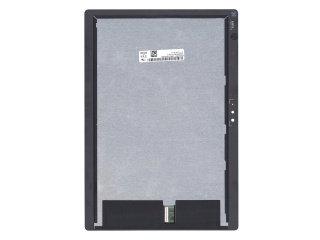

| PartNumber | TV101WUM-LL3 |
| Brand | BOE |
| Size | 10.1 |
| Application | Pad & Tablet |
| Resolution | 1200×1920 |
| Composition | a-Si TFT-LCD, Assemb |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Model | TV101WUM-LL3 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, Assembly |
| Pixel Format | 1200(RGB)×1920 [WUXGA] 225PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 135.36(H)×216.576(V) mm |
| Outline Dim. | 163.1(H)×237.14(V) mm |
| Bezel Area | - |
| Treatment | Hard coating |
| Luminance | 320 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Support Color | 16.7M 71% NTSC |
| Light Source | WLED [8S4P] , W/O Driver |
| Weight | 225g (Typ.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | In-Cell Touch |
| Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
