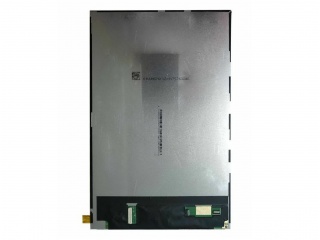

| PartNumber | TV101WUM-NH1 |
| Brand | BOE |
| Size | 10.1 |
| Application | Pad & Tablet |
| Resolution | 1200×1920 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 10.1 inch |
| Pixel Format | 1200(RGB)×1920 [WUXGA] 225PPI |
| Active Area | 135.36(H)×216.576(V) mm |
| Bezel Area | - |
| Luminance | 450 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Support Color | 16.7M 100% sRGB |
| Weight | 130g (Max.) |
| Frame Rate | 60Hz |
| Model | TV101WUM-NH1 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 141.6(H)×227.41(V) ×3.8(D) mm |
| Treatment | Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED [8S4P] , W/O Driver |
| Designed For | Pad & Tablet |
| Touch Panel | Without |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| LP101WH1-TLP1 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| N101ICE-G63 | Innolux | 10.1 | 1280×800 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
