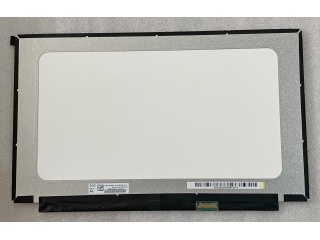

| PartNumber | TV156FHM-NH1 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 15.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Active Area | 344.16(H)×193.59(V) mm |
| Bezel Area | - |
| Luminance | 250 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 262K 45% NTSC |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |
| Interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | TV156FHM-NH1 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 350.76(H)×216.2(V) ×3.2(D) mm |
| Treatment | Antiglare, Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
| B156XW04 V6 | AUO | 15.6 | 1366×768 |
| G156XW01 V1 | AUO | 15.6 | 1366×768 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LTN156AT02-A11 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
| M156MWR1 R0 | IVO | 15.6 | 1366×768 |
| N156BGE-L62 | Innolux | 15.6 | 1366×768 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
