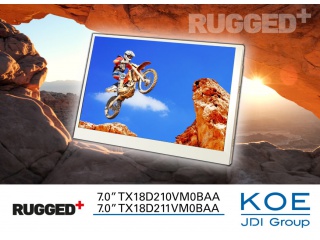

| PartNumber | TX18D210VM0BAA |
| Brand | KOE |
| Size | 7.0 |
| Application | Industrial Outdoor H |
| Resolution | 800×480 |
| Composition | LCM , LTPS TFT-LCD |
| Brightness | |
| CR | 1200:1 |
| Colors | 262K |
| Backlight | WLED , 50K hours , With LED Driver |
| Interface | Parallel |
| Manufacturer | KOE |
| Screen Size | 7.0 inch |
| Pixel Number | 800(RGB)×480 (WVGA) 133PPI |
| Active Area(mm) | 152.4 × 91.44 (H×V) |
| Bezel Area(mm) | 156.2 × 94.5 (H×V) |
| Luminance | 800 cd/m² (Typ.) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K 72% NTSC |
| Mass | 214g (Typ.) |
| Refresh Rate | 60Hz |
| Signal Type | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| Model Name | TX18D210VM0BAA |
| Screen Type | LCM , LTPS TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 167.7 × 109.5 × 20.3 (H×V×D) |
| Treatment | - |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Work Mode | IPS, Normally Black, Transmissive |
| Used for | Industrial Outdoor High Brightness Automotive Display |
| Touchscreen | Without |
