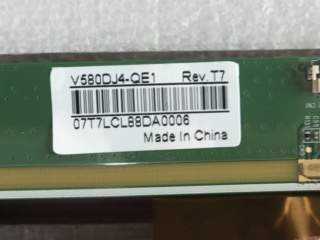

| PartNumber | V580DJ4-QE1 Rev.T7 |
| Brand | Innolux |
| Size | 58 |
| Application | TV Sets |
| Resolution | 3840×2160 |
| Composition | a-Si TFT-LCD , CELL |
| Brightness | |
| CR | 5000:1 |
| Colors | 1.07B |
| Backlight | No |
| Interface | |
| Diagonal Size | 58 inch |
| Pixel Format | 3840(RGB)×2160 [UHD] 76PPI |
| Active Area | 1270.08(H)×721.44(V) mm |
| Luminance | 0 cd/m² |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 1.07B 85% NTSC |
| Weight | - |
| Frame Rate | 60Hz |
| Model | V580DJ4-QE1 Rev.T7 |
| Type | a-Si TFT-LCD , CELL |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | - |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Response Time | 9.5 (Typ.)(G to G) |
| Operating Mode | Super MVA, Normally Black, Transmissive |
| Light Source | No B/L |
| Designed For | TV Sets |
| Touch Panel | Without |
