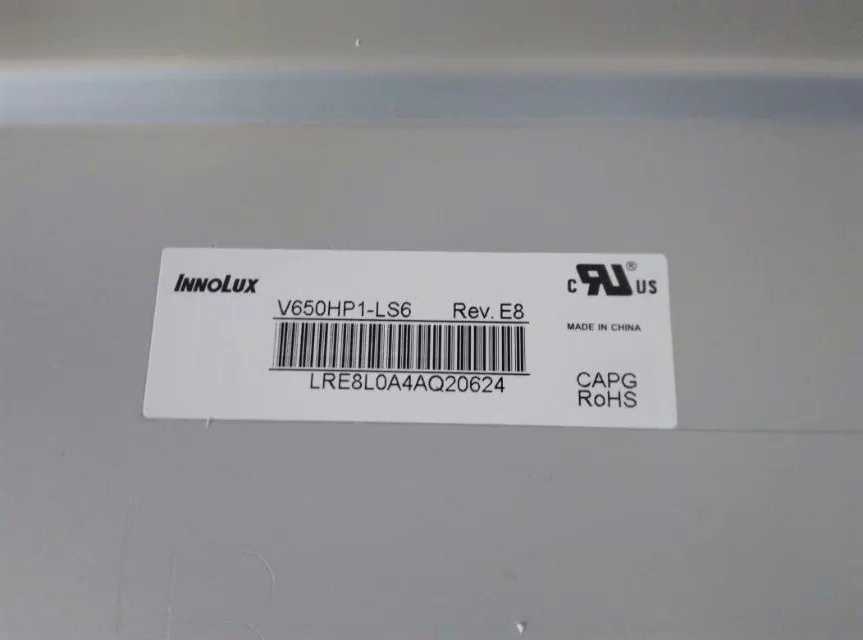

| PartNumber | V650HP1-LS6 Rev.E8 |
| Brand | Innolux |
| Size | 65 |
| Application | TV Sets |
| Resolution | 1920×1080 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 5000:1 |
| Colors | 1.07B |
| Backlight | 4 strings WLED , 30K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | Innolux |
| Model Name | V650HP1-LS6 Rev.E8 |
| Screen Size | 65 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 34PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1428.48 × 803.52 (H×V) |
| Outline(mm) | 1450.5 × 828.52 × 30.8 (H×V×D) |
| Bezel Area(mm) | 1435.5 × 810.52 (H×V) |
| Treatment | Antiglare (Haze 1%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 5000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥20) |
| Response | 6.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 1.07B 100% sRGB |
| Mass | 23.0±1.2Kgs |
| Used for | TV Sets |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 10-bit) , Connector 102 pins |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LC650EQF-PHF1 | LG Display | 65 | 3840×2160 |
| P645HW03 V0 | AUO | 65 | 1920×1080 |
| P650HVN02.2 | AUO | 65 | 1920×1080 |
| T645HB01 V0 | AUO | 65 | 1920×1080 |
| T650HVJ02.1 | AUO | 65 | 1920×1080 |
| T650QVD01.0 CELL | AUO | 65 | 3840×2160 |
| T650QVF04.0 | AUO | 65 | 3840×2160 |
| V650DK1-LS1 | Innolux | 65 | 3840×2160 |
| V650HP1-LS6 | Innolux | 65 | 1920×1080 |
| V650HP1-LS6 Rev.E | Innolux | 65 | 1920×1080 |
