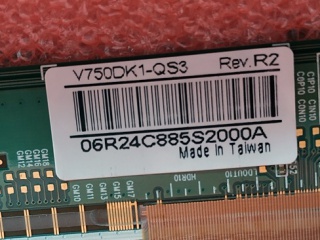

| PartNumber | V750DK1-QS3 Rev.R2 |
| Brand | Innolux |
| Size | 75 |
| Application | TV Sets |
| Resolution | 3840×2160 |
| Composition | CELL, a-Si TFT-LCD |
| Brightness | |
| CR | 5000:1 |
| Colors | 1.07B |
| Backlight | No B/L |
| Interface | |
| Manufacturer | Innolux |
| Model Name | V750DK1-QS3 Rev.R2 |
| Screen Size | 75 inch |
| Screen Type | CELL, a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 59PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1650.24 × 928.26 (H×V) |
| Outline(mm) | - |
| Luminance | 0 cd/m² |
| Contrast Ratio | 5000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 6.5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | Super MVA, Normally Black, Transmissive |
| Glass Thickness | 0.50+0.50 mm |
| Transmissivity | - |
| Color Depth | 1.07B |
| Mass | - |
| Used for | TV Sets |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
