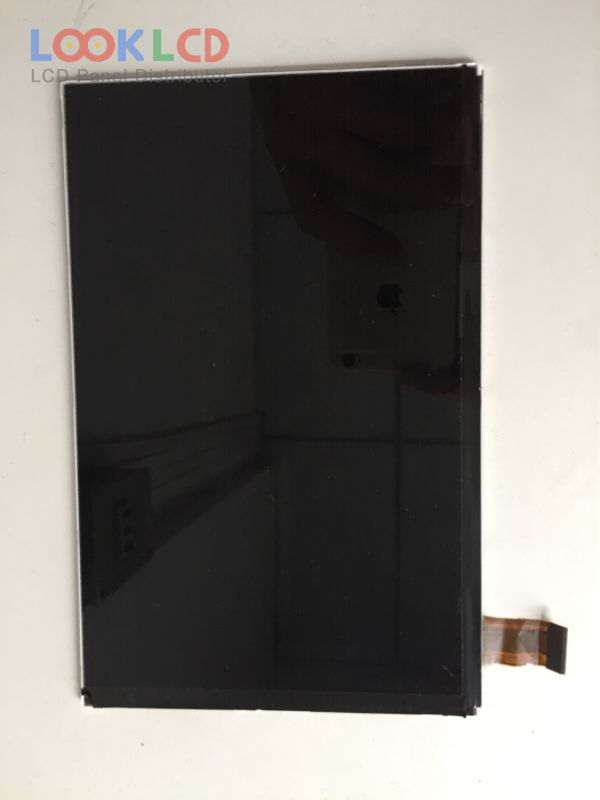

| PartNumber | VVX07H005A90 |
| Brand | Panasonic |
| Size | 7.0 |
| Application | PAD |
| Resolution | 800(RGB)×1280 , WXGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | Panasonic |
| Panel Model | VVX07H005A90 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 94.2×150.72 mm |
| Outline | 104.32×161.67×3.8 mm |
| Surface | Hard coating |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 5S5PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 34 pins |
| Input Voltage | 1.8/3.3V (Typ.)(VCC/VDD) |
