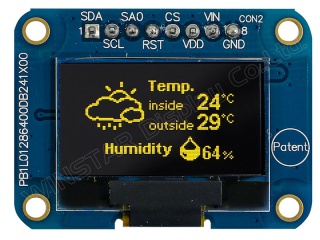

| PartNumber | WEA012864DLPP3N00001 |
| Brand | Winstar |
| Size | 0.96 |
| Application | Instruments & Meters |
| Resolution | 128×64, 149PPI |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | 4-wire |
| Panel Brand | Winstar |
| Panel Model | WEA012864DLPP3N00001 |
| Panel Size | 0.96" |
| Panel Type | PM-OLED, OLED |
| Pixel Format | Rectangle |
| Display Area | 21.74(W)×10.86(H) mm |
| Bezel Opening | 23.94(W)×12.06(H) mm |
| Outline Size | 38(W)×28.5(H) ×4.37(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(Yellow) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Built-in SSD1306BZ |
| Panel Weight | - |

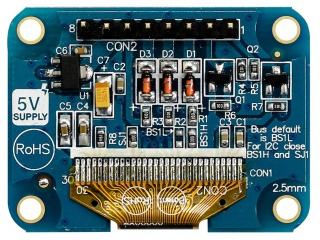

| Signal Interface | 4-wire SPI, I²C , 8 pins PIN |
| Input Voltage | 3.3/5.0/7.5V (Typ.) |
| Environment | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
