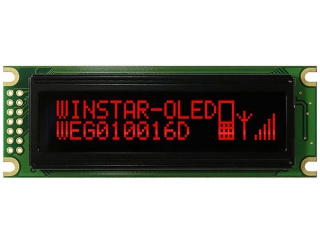

| PartNumber | WEG010016DW |
| Brand | Winstar |
| Size | 2.4 |
| Application | Instruments & Me |
| Resolution | 100×16 |
| Composition | OLED, PM-OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU |
| Manufacturer | Winstar |
| Model Name | WEG010016DW |
| Screen Size | 2.4 inch |
| Screen Type | OLED, PM-OLED |
| Pixel Number | 100×16 42PPI |
| Arrangement | Rectangle |
| Active Area(mm) | 59.95 × 11.15 (H×V) |
| Outline(mm) | 85 × 30.5 × 10 (H×V×D) |
| Bezel Area(mm) | 66 × 16 (H×V) |
| Treatment | - |
| Viewing Angle | - |
| Response | - |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | Mono(White) |
| Mass | - |
| Used for | Instruments & Meters |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Built-in COG WS0010 |
| Signal Type | CPU , Pad 14 pins |
| Voltage Supply | 5.0V (Typ.) |
