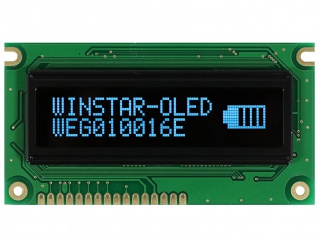

| PartNumber | WEG010016EB |
| Brand | Winstar |
| Size | 2.4 |
| Application | Instruments & Meters |
| Resolution | 100×16, 42PPI |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | CPU |
| Panel Brand | Winstar |
| Panel Model | WEG010016EB |
| Panel Size | 2.4" |
| Panel Type | PM-OLED, OLED |
| Pixel Format | Rectangle |
| Display Area | 59.95(W)×11.15(H) mm |
| Bezel Opening | 66(W)×16(H) mm |
| Outline Size | 84(W)×44(H) ×10(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(Blue) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COGBuilt-in WS0010 |
| Panel Weight | - |
| Signal Interface | CPU , 14 pins Pad |
| Input Voltage | 5.0V (Typ.) |
