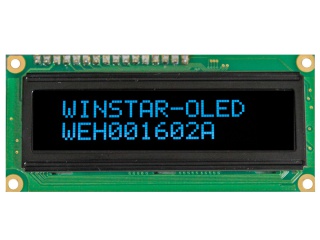

| PartNumber | WEH001602AS |
| Brand | Winstar |
| Size | 2.3 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | 2000:1 |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Model | WEH001602AS |
| Diagonal Size | 2.3 inch |
| Type | PM-OLED, OLED |
| Char Format | 5×8 dots |
| Font Size | 2.95×5.55 mm |
| Font Pitch | 3.6×6.3 mm |
| Active Area | 56.95(H)×11.85(V) mm |
| Outline Dim. | 80(H)×36(V) ×10(D) mm |
| Bezel Area | 66(H)×16(V) mm |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 0.01 (Typ.) |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Blue) |
| Light Source | self |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| Operating Temperature: -40 ~ 80 °C - |
| AL1602B | Other | 2.3 | 16×2 |
| AMC162A | Other | 2.3 | 16×2 |
| AMC162B | Other | 2.3 | 16×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| TM023KDH60 | Tianma | 2.3 | 320×240 |
