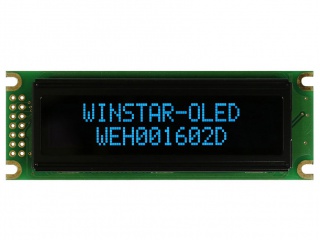

| PartNumber | WEH001602DB |
| Brand | Winstar |
| Size | 2.3 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | OLED, PM-OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Manufacturer | Winstar |
| Model Name | WEH001602DB |
| Screen Size | 2.3 inch |
| Screen Type | OLED, PM-OLED |
| Char Number | 16 characters × 2 lines 7PPI |
| Char Format | 5×8 dots |
| Char Pitch(mm) | 3.6×6.3 (H×V) |
| Char Size(mm) | 2.95×5.55 (H×V) |
| Active Area(mm) | 56.95 × 11.85 (H×V) |
| Outline(mm) | 85 × 30 × 10 (H×V×D) |
| Bezel Area(mm) | 66 × 16 (H×V) |
| Treatment | - |
| Viewing Angle | - |
| Response | - |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | Mono(Blue) |
| Mass | - |
| Used for | Instruments & Meters |
| Refresh Rate | - |
| Touchscreen | Without |
| 5.0V (Typ.) |
