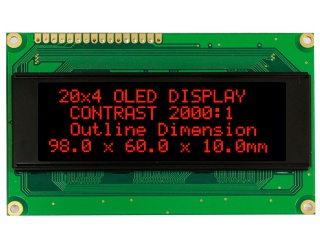

| PartNumber | WEH002004BR |
| Brand | Winstar |
| Size | 2.9 |
| Application | Instruments & Meters |
| Resolution | 20×47 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Red) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Winstar |
| Panel Model | WEH002004BR |
| Panel Size | 2.9" |
| Panel Type | PM-OLED, OLED |
| Display Format | 20 characters × 4 lines, 7PPI |
| Font Format | 5×8 dots |
| Character Size | 2.9×4.75(W×H) mm |
| Character Pitch | 3.54×5.4(W×H) mm |
| Display Area | 70.16(W)×20.95(H) mm |
| Bezel Opening | 77(W)×25.2(H) mm |
| Outline Size | 98(W)×60(H) ×10(D) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(Red) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COBBuilt-in WS0010 |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 16 pins FPC |
| Input Voltage | 5.0V (Typ.) |
