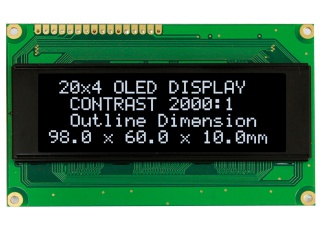

| PartNumber | WEH002004BW |
| Brand | Winstar |
| Size | 2.9 |
| Application | Instruments & Meters |
| Resolution | 5×8 |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | |
| Colors | Mono(White) |
| Backlight | self |
| Interface | CPU/SPI |
| Diagonal Size | 2.9 inch |
| Char Format | 5×8 dots |
| Font Size | 2.9×4.75 mm |
| Active Area | 70.16(H)×20.95(V) mm |
| Bezel Area | 77(H)×25.2(V) mm |
| View Direction | Symmetry |
| Viewing Angle | - |
| Support Color | Mono(White) |
| Weight | - |
| Frame Rate | - |
| D-IC Detail | COB Built-in WS0010 |
| Interface Type | CPU/SPI , 16 pins FPC |
| Power Supply | 5.0V (Typ.) |
| Model | WEH002004BW |
| Type | PM-OLED , OLED |
| Font Pitch | 3.54×5.4 mm |
| Outline Dim. | 98(H)×60(V) ×10(D) mm |
| Treatment | - |
| Response Time | - |
| Operating Mode | - |
| Light Source | self |
| Designed For | Instruments & Meters |
| Touch Panel | Without |
