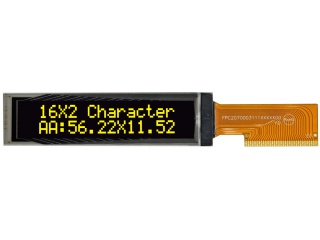

| PartNumber | WEO001602CL |
| Brand | Winstar |
| Size | 2.3 |
| Application | Instruments & Meters |
| Resolution | 16×27 |
| Composition | PM-OLED, OLED |
| Brightness | - |
| CR | 2000:1 |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | 8-bit |
| Panel Brand | Winstar |
| Panel Model | WEO001602CL |
| Panel Size | 2.3" |
| Panel Type | PM-OLED, OLED |
| Display Format | 16 characters × 2 lines, 7PPI |
| Font Format | 5×8 dots |
| Character Size | 2.97×5.57(W×H) mm |
| Character Pitch | 3.55×5.95(W×H) mm |
| Display Area | 56.22(W)×11.52(H) mm |
| Bezel Opening | 58.22(W)×13.52(H) mm |
| Outline Size | 68.5(W)×17.5(H) ×2.25(D) mm |
| Surface | - |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | 0.01 (Typ.) |
| Display Colors | Mono(Yellow) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | COG Built-in SSD1311M1Z |
| Panel Weight | - |
| Signal Interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| Input Voltage | 3.3/5.0V (Typ.)(VDD) |
