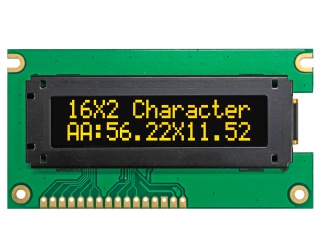

| PartNumber | WEO001602GL |
| Brand | Winstar |
| Size | 2.3 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | 2000:1 |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | 8-bit |
| Model | WEO001602GL |
| Diagonal Size | 2.3 inch |
| Type | PM-OLED, OLED |
| Char Format | 5×8 dots |
| Font Size | 2.97×5.57 mm |
| Font Pitch | 3.55×5.95 mm |
| Active Area | 56.22(H)×11.52(V) mm |
| Outline Dim. | 79(H)×44(V) ×9.67(D) mm |
| Bezel Area | 58.22(H)×13.52(V) mm |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 2000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 0.01 (Typ.) |
| Viewing Angle | 88/88/88/88 |
| Operating Mode | - |
| Support Color | Mono(Yellow) |
| Light Source | self |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Built-in SSD1311M1Z |
| Interface Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| Power Supply | 3.3/5.0V (Typ.)(VDD) |
