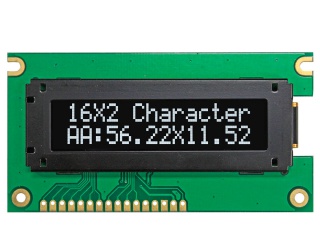

| PartNumber | WEO001602GW |
| Brand | Winstar |
| Size | 2.3 |
| Application | Instruments & Me |
| Resolution | 5×8 |
| Composition | OLED , PM-OLED |
| Brightness | |
| CR | 2000:1 |
| Colors | Mono(White) |
| Backlight | self |
| Interface | 8-bit |
| Manufacturer | Winstar |
| Model Name | WEO001602GW |
| Screen Size | 2.3 inch |
| Screen Type | OLED , PM-OLED |
| Char Number | 16 characters × 2 lines 7PPI |
| Char Format | 5×8 dots |
| Char Pitch(mm) | 3.55×5.95 (H×V) |
| Char Size(mm) | 2.97×5.57 (H×V) |
| Active Area(mm) | 56.22 × 11.52 (H×V) |
| Outline(mm) | 79 × 44 × 9.67 (H×V×D) |
| Bezel Area(mm) | 58.22 × 13.52 (H×V) |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 2000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 |
| Response | 0.01 (Typ.) ms |
| Good View at | Symmetry |
| Work Mode | - |
| Color Depth | Mono(White) |
| Mass | - |
| Used for | Instruments & Meters |
| Refresh Rate | - |
| Touchscreen | Without |
| Driver IC list | Built-in COG SSD1311M1Z |
| Signal Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| Voltage Supply | 3.3/5.0V (Typ.)(VDD) |
