| PartNumber | WEO002002AW |
| Brand | Winstar |
| Size | 2.9 |
| Application | Instruments & Meters |
| Resolution | 5×8 |
| Composition | OLED , PM-OLED |
| Brightness | |
| CR | 2000:1 |
| Colors | Mono(White) |
| Backlight | self |
| Interface | 8-bit |
| Manufacturer | Winstar |
| Screen Size | 2.9 inch |
| Char Number | 20 characters × 2 lines 6PPI |
| Char Pitch(mm) | 3.7×5.95 (H×V) |
| Active Area(mm) | 73.52 × 11.52 (H×V) |
| Bezel Area(mm) | 75.32 × 13.52 (H×V) |
| Luminance | - |
| Viewing Angle | 88/88/88/88 |
| Good View at | Symmetry |
| Color Depth | Mono(White) |
| Mass | - |
| Refresh Rate | - |
| Driver IC list | Built-in COG SSD1311M1Z |
| Signal Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| Voltage Supply | 3.3/5.0V (Typ.)(VDD) |
| Model Name | WEO002002AW |
| Screen Type | OLED , PM-OLED |
| Char Format | 5×8 dots |
| Char Size(mm) | 3.22×5.57 (H×V) |

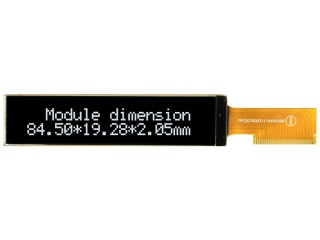

| Outline(mm) | 84.5 × 19.2 × 2.15 (H×V×D) |
| Treatment | - |
| Contrast Ratio | 2000 : 1 (Typ.) (TM) |
| Response | 0.01 (Typ.) ms |
| Work Mode | - |
| Used for | Instruments & Meters |
| Touchscreen | Without |
