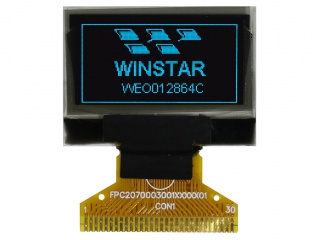

| PartNumber | WEO012864CS |
| Brand | Winstar |
| Size | 0.96 |
| Application | Handheld & PDA Instruments & Meters |
| Resolution | 128×64, 149PPI |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Panel Brand | Winstar |
| Panel Size | 0.96" |
| Display Area | 21.74(W)×10.86(H) mm |
| Outline Size | 26.7(W)×19.26(H) ×1.85(D) mm |
| Viewing Angle | - |
| Best View on | Symmetry |
| Display Colors | Mono(Blue) |
| Frequency | - |
| Weight | - |
| Panel Model | WEO012864CS |
| Panel Type | PM-OLED , OLED |
| Pixel Format | Rectangle |
| Bezel Opening | 23.34(W)×11.46(H) mm |
| Surface | - |
| Display Mode | - |
| Response Time | - |
| Lamp Type | self |
| Touch Screen | Without |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| OEL9M0083-B-E | Other | 0.96 | 128×64 |
| OEL9M0083-G-E | Other | 0.96 | 128×64 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| RGS10128064WR010 | RiTdisplay | 0.96 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
