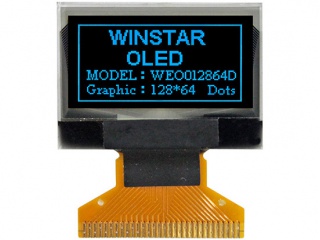

| PartNumber | WEO012864DB |
| Brand | Winstar |
| Size | 0.96 |
| Application | Handheld & PDA H |
| Resolution | 128×64 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | |
| Model | WEO012864DB |
| Diagonal Size | 0.96 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 128×64 149PPI |
| Configuration | Rectangle |
| Active Area | 21.738(H)×10.858(V) mm |

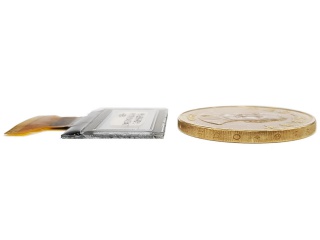

| Outline Dim. | 26.7(H)×19.26(V) ×1.81(D) mm |
| Bezel Area | 23.938(H)×12.058(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Blue) |
| Light Source | self |
| Weight | - |
| Designed For | Handheld & PDA Healthcare Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| 3.0V (Typ.) |
