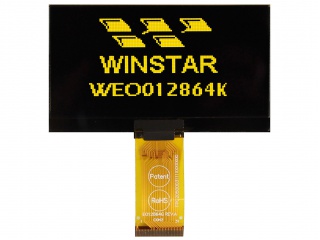

| PartNumber | WEO012864KL |
| Brand | Winstar |
| Size | 2.7 |
| Application | Handheld & PDA Instr |
| Resolution | 128×64 |
| Composition | OLED , PM-OLED |
| Brightness | |
| CR | |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | 8-bit |
| Manufacturer | Winstar |
| Screen Size | 2.7 inch |
| Pixel Number | 128×64 52PPI |
| Active Area(mm) | 61.41 × 30.69 (H×V) |
| Bezel Area(mm) | 63.41 × 32.69 (H×V) |
| Viewing Angle | - |
| Good View at | Symmetry |
| Color Depth | Mono(Yellow) |
| Mass | - |
| Refresh Rate | - |
| Driver IC list | Built-in COG SSD1309ZC |
| Signal Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 31 pins FPC |
| Voltage Supply | 3.0V (Typ.) |
| Model Name | WEO012864KL |
| Screen Type | OLED , PM-OLED |
| Arrangement | Rectangle |
| Outline(mm) | 73 × 41.86 × 2.15 (H×V×D) |
| Treatment | - |
| Response | - |
| Work Mode | - |
| Used for | Handheld & PDA Instruments & Meters |
| Touchscreen | Without |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A027DN03 V8 | AUO | 2.7 | 320×240 |
| A027DN04 V4 | AUO | 2.7 | 320×240 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| OEL9M0065-Y-E | Other | 2.7 | 256×64 |
| RGS27128064YW000 | RiTdisplay | 2.7 | 128×64 |
| TM027CDH12 | Tianma | 2.7 | 320×240 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
