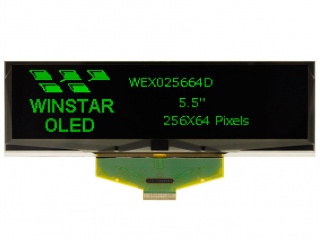

| PartNumber | WEX025664DG |
| Brand | Winstar |
| Size | 5.5 |
| Application | Industrial Handheld |
| Resolution | 256×64 |
| Composition | PM-OLED , OLED |
| Brightness | |
| CR | |
| Colors | Mono(Green) |
| Backlight | self |
| Interface | CPU/SPI |
| Diagonal Size | 5.5 inch |
| Pixel Format | 256×64 47PPI |
| Active Area | 135.65(H)×33.89(V) mm |
| Bezel Area | 137.65(H)×35.89(V) mm |
| View Direction | Symmetry |
| Viewing Angle | - |
| Support Color | Mono(Green) |
| Weight | - |
| Frame Rate | - |
| D-IC Detail | TAB Built-in SSD1322UR1 |
| Interface Type | CPU/SPI , 30 pins FPC |
| Power Supply | 3.0V (Typ.) |
| Environment | Operating Temperature: -40 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| Model | WEX025664DG |
| Type | PM-OLED , OLED |
| Configuration | Rectangle |
| Outline Dim. | 146(H)×45(V) mm |
| Treatment | - |
| Response Time | - |
| Operating Mode | - |
| Light Source | self |
| Designed For | Industrial Handheld & PDA |
| Touch Panel | Without |
