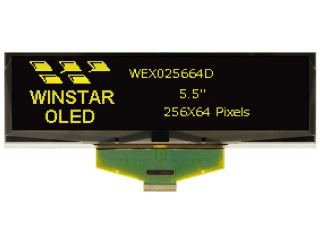

| PartNumber | WEX025664DL |
| Brand | Winstar |
| Size | 5.5 |
| Application | Industrial Handheld & PDA |
| Resolution | 256×64, 47PPI |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Yellow) |
| Backlight | self |
| Interface | CPU/SPI |
| Panel Brand | Winstar |
| Panel Model | WEX025664DL |
| Panel Size | 5.5" |
| Panel Type | PM-OLED, OLED |
| Pixel Format | Rectangle |
| Display Area | 135.65(W)×33.89(H) mm |
| Bezel Opening | 137.65(W)×35.89(H) mm |
| Outline Size | 146(W)×45(H) mm |
| Surface | - |
| Viewing Angle | - |
| Display Mode | - |
| Best View on | Symmetry |
| Response Time | - |
| Display Colors | Mono(Yellow) |
| Lamp Type | self |
| Frequency | - |
| Touch Screen | Without |
| Driver IC | TAB Built-in SSD1322UR1 |
| Panel Weight | - |
| Signal Interface | CPU/SPI , 30 pins FPC |
| Input Voltage | 3.0V (Typ.) |
| Environment | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
