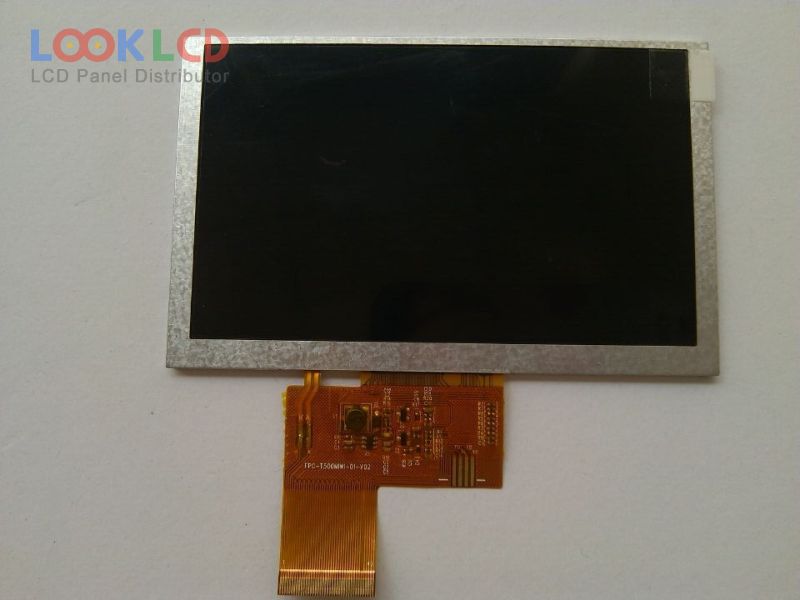

| PartNumber | YXDK050TN02-40NM03 |
| Brand | SEBO |
| Size | 5.0 |
| Application | CNS |
| Resolution | 800(RGB)×480 , WVGA |
| Composition | LCM |
| Brightness | 900 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SEBO |
| Panel Model | YXDK050TN02-40NM03 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 5.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 108×64.8 mm |
| Outline | 120.7×75.8 mm |
| Surface | Antiglare |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S3PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| AA050ME01 | Mitsubishi | 5.0 | 800×480 |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| H497TLB01 | AUO | 5.0 | 720×1280 |
| HE050NA-01F | Innolux | 5.0 | 800×480 |
| LT050CA41000 | JDI | 5.0 | 800×480 |
| PA050DS4 | E Ink | 5.0 | 320×234 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PA050XU4 | E Ink | 5.0 | 320×234 |
| YXDK050TN02-40NM03 | SEBO | 5.0 | 800×480 |
| C035QVN01.0 | AUO | 3.5 | 240×320 |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| LQ080Y5CGQ2 | SHARP | 8.0 | 800×480 |
| PA079DS1T3 | E Ink | 7.9 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
