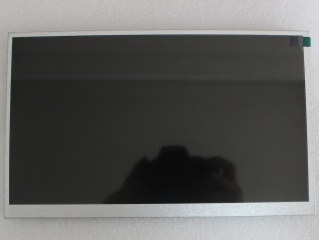

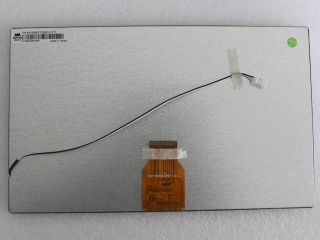

| PartNumber | AM-1024600ITZQW-00H |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 550 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Model | AM-1024600ITZQW-00H |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | - |
| Outline Size | 234.9(W)×143(H) ×4.9(D) mm |
| Surface | Antiglare, Hard coating |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 12/28 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 70% NTSC |
| Lamp Type | WLED , 50K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| Input Voltage | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
