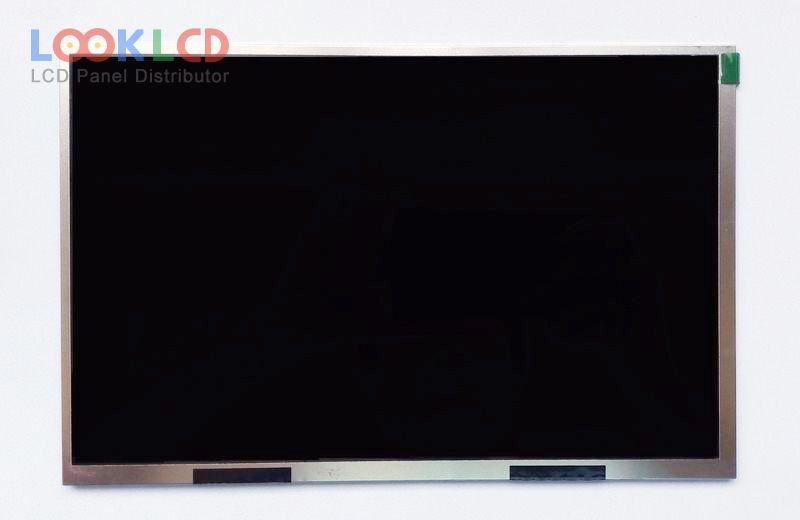

| PartNumber | DLC1010GIG |
| Brand | Other |
| Size | 10.1 |
| Application | CNS |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | DLC |
| Panel Model | DLC1010GIG 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 229.46×149.1×7.16 mm |
| Surface | Hard coating |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193150% |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
