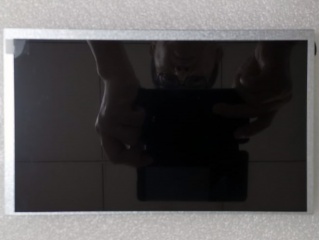

| PartNumber | AM-1024600Y3TZQW-A0H |
| Brand | AMPIRE |
| Size | 9.0 |
| Application | Industrial |
| Resolution | 1024(RGB)×600, WSVGA, 132PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Model | AM-1024600Y3TZQW-A0H |
| Panel Size | 9.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 196.6(W)×114.1(H) mm |
| Bezel Opening | 200(W)×117.55(H) mm |
| Outline Size | 211.1(W)×126.5(H) ×11(D) mm |
| Surface | - |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/17 (Typ.)(Tr/Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
