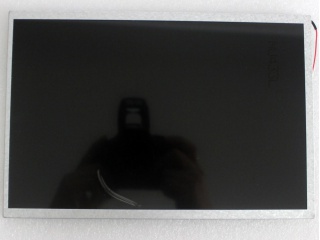

| PartNumber | AM-1280800NGTZQW-17H |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 1500 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | 7S6P |
| Interface | LVDS |
| Panel Brand | AMPIRE |
| Panel Size | 10.1" |
| Display Area | 216.96(W)×135.6(H) mm |
| Outline Size | 231(W)×154.4(H) ×6.2(D) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 45% NTSC |
| Frequency | 60Hz |
| Panel Weight | TBD |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Model | AM-1280800NGTZQW-17H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 220.76(W)×140.4(H) mm |
| Surface | Hard coating |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | 7S6P WLED , 50K hours , Without Driver |
| Touch Screen | Without |
