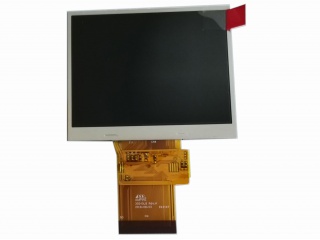

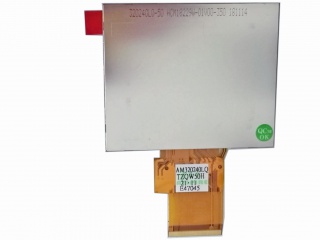

| PartNumber | AM-320240LQTZQW-50H |
| Brand | AMPIRE |
| Size | 3.5 |
| Application | Industrial Outdoor High Brightness Instruments & Meters |
| Resolution | 320(RGB)×240, QVGA, 115PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 800 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 6S2P |
| Interface | Parallel |
| Panel Brand | AMPIRE |
| Panel Size | 3.5" |
| Display Area | 70.08(W)×52.56(H) mm |
| Outline Size | 76.9(W)×63.9(H) ×3.45(D) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 60% NTSC |
| Frequency | 60Hz |
| Panel Weight | - |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Model | AM-320240LQTZQW-50H |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 72.88(W)×54.94(H) mm |
| Surface | - |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | 6S2P WLED , 36K hours , Without Driver |
| Touch Screen | Without |
