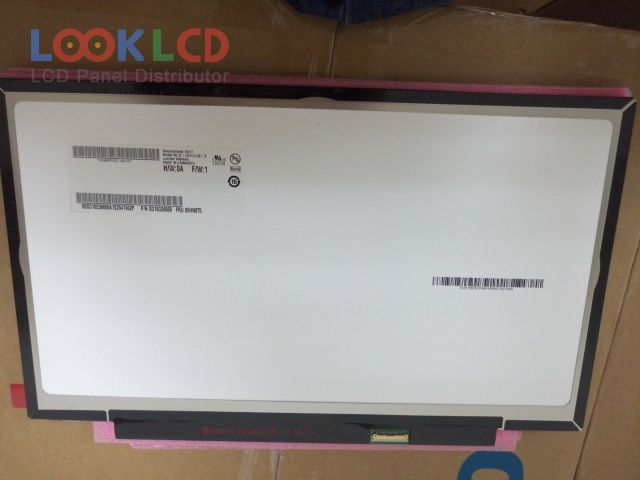

| PartNumber | B140HAN01.8 |
| Brand | AUO |
| Size | 14.0 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | AUO |
| Panel Model | B140HAN01.8 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.0 inch |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 309.14×173.89 mm |
| Outline | 320.4×198.6×2.45 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193172% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140HAN01.1 | AUO | 14.0 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| B140HTN01.1 | AUO | 14.0 | 1920×1080 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| HSD140PNW1-B00 | HannStar | 14.0 | 1600×900 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
| HB125WX1-100 | BOE | 12.5 | 1366×768 |
| LM130SS1T611 | SHARP | 13.0 | 800×600 |
| LP133WX3-TLA4 | LG Display | 13.3 | 1280×800 |
| LP156WH2-TLB1 | LG Display | 15.6 | 1366×768 |
| LQ121X1LH83 | SHARP | 12.1 | 1024×768 |
| LTN121XJ-L03 | Samsung | 12.1 | 1024×768 |
| LTN140AT08-S03 | Samsung | 14.0 | 1366×768 |
| LTN140AT28-W01 | Samsung | 14.0 | 1366×768 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
