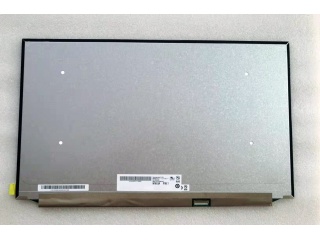

| PartNumber | B173ZAN03.5 |
| Brand | AUO |
| Size | 17.3 |
| Application | Laptop Gaming |
| Resolution | 3840×2160 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 17.3 inch |
| Pixel Format | 3840(RGB)×2160 [UHD] 255PPI |
| Active Area | 381.89(H)×214.81(V) mm |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 1.07B 100% NTSC |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 120Hz |
| Interface Type | eDP (4 Lanes) , eDP1.4a , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

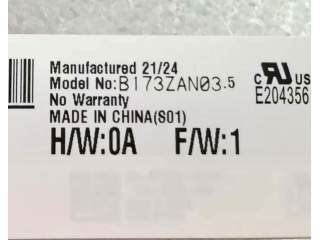

| Model | B173ZAN03.5 (AUO2892) |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 389.89(H)×238.31(V) ×3.5(D) mm |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| Response Time | 10 (Typ.)(Tr+Td); 8.3 (Typ.)(G to G) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Laptop Gaming |
| Touch Panel | Without |
