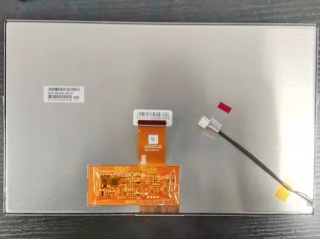

| PartNumber | C101EAN02.0 |
| Brand | AUO |
| Size | 10.1 |
| Application | Outdoor High Brightn |
| Resolution | 1280×720 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Model | C101EAN02.0 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1280(RGB)×720 [WXGA] 145PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 223.68(H)×125.82(V) mm |
| Outline Dim. | 238.6(H)×148(V) ×10.8(D) mm |
| Bezel Area | 226.78(H)×132.22(V) mm |
| Treatment | Antiglare |
| Luminance | 780 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20/20 (Max.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Support Color | 16.7M 98% sRGB |
| Light Source | WLED [8S3P] , 10K hours , W/O Driver |
| Weight | 400±40g |
| Designed For | Outdoor High Brightness Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | MIPI (4 data lanes) , 40 pins FPC |
| Power Supply | 3.3/3.3V (Typ.)(VDD/VDDA) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
