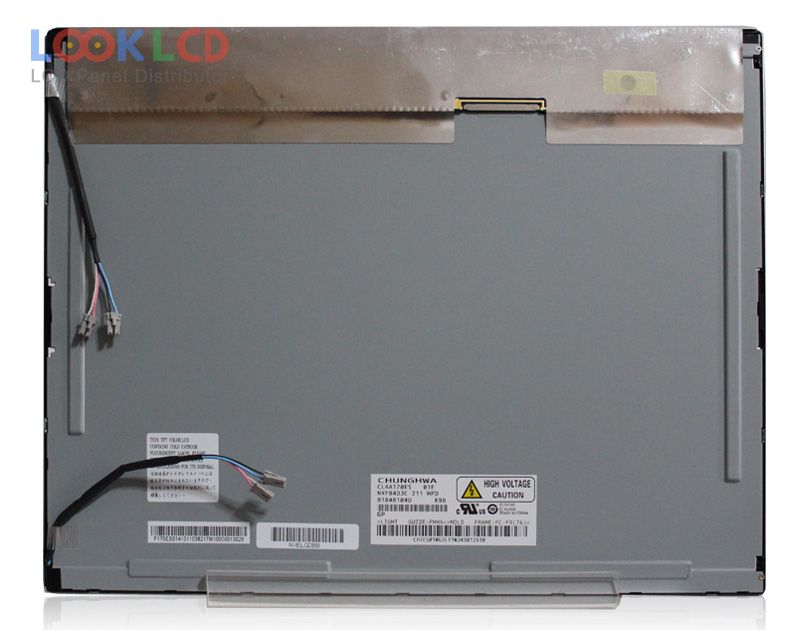

| PartNumber | CLAA170ES01E |
| Brand | CPT |
| Size | 17.0 |
| Application | DMPC |
| Resolution | 1280(RGB)×1024 , SXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.2M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | CPT |
| Panel Model | CLAA170ES01E 7 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 337.92×270.336 mm |
| Outline | 354.9×290.3×13.3 mm |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC), CIE193172% |
| Response Time | 6 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
