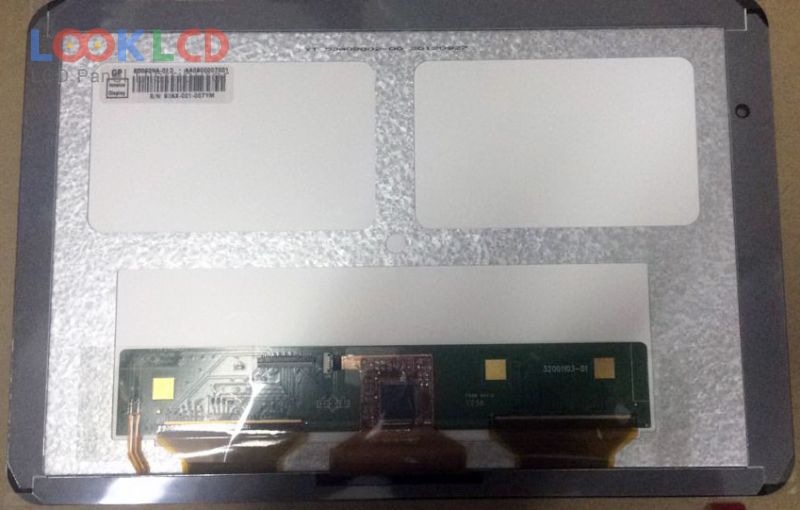

| PartNumber | ED090NA-01D |
| Brand | Innolux |
| Size | 9.0 |
| Application | PAD |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | Assembly |
| Brightness | 200 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | ED090NA-01D |
| Panel Type | a-Si TFT-LCD , Assembly |
| Panel Size | 9.0 inch |
| Active Area | 193.92×121.2 mm |
| Outline | 235.12×156.4×7.84 mm |
| Surface | Hard coating (7H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Signal Interface | LVDS (1 ch, 6/8-bit), 51 pins |
| Input Voltage | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
