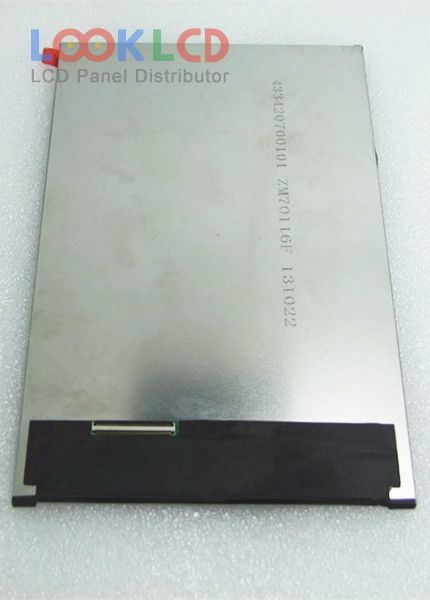

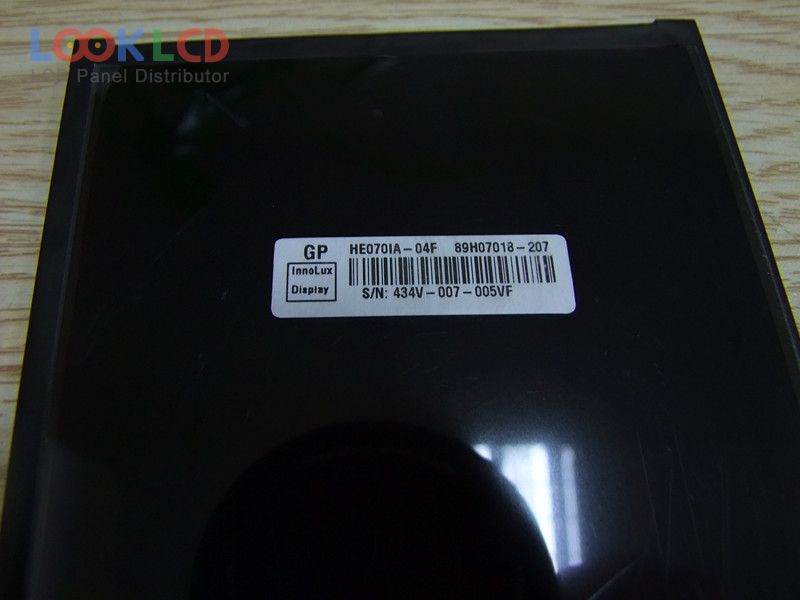

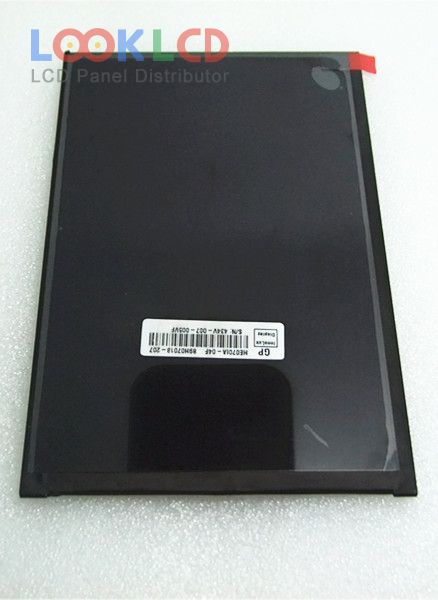

| PartNumber | HE070IA-04F |
| Brand | Innolux |
| Size | 7.0 |
| Application | PAD |
| Resolution | 800(RGB)×1280 , WXGA |
| Composition | CELL |
| Brightness | 0 |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | HE070IA-04F |
| Panel Type | a-Si TFT-LCD , CELL |
| Panel Size | 7.0 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 94.2×150.72 mm |
| Outline | 101.5×159.52×0.82 mm |
| Surface | Hard coating |
| Glass Depth | 0.25+0.25 mm |
| Transmissivity | 4.96% (Typ.)(with Polarizer) |
| Contrast Ratio | 800:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193160% |
| Response Time | 50 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Voltage | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
