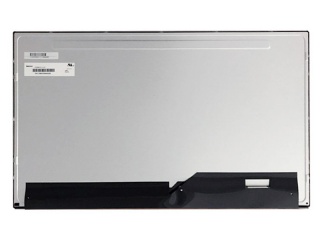

| PartNumber | G238HCJ-L01 |
| Brand | Innolux |
| Size | 23.8 |
| Application | Industrial |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Model | G238HCJ-L01 |
| Diagonal Size | 23.8 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 92PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 527.04(H)×296.46(V) mm |
| Outline Dim. | 543(H)×317.4(V) mm |
| Bezel Area | 530.2(H)×299.6(V) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 8/7 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED , 30K hours , W/O Driver |
| Weight | 2.71Kgs (Typ.) |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0±0.5V |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| G238HAN01.0 | AUO | 23.8 | 1920×1080 |
| LM238WF1-SLK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM238WQ1-SLA1 | LG Display | 23.8 | 2560×1440 |
| M238DAN01.1 Q0 | AUO | 23.8 | 2560×1440 |
| M238HAN01.0 | AUO | 23.8 | 1920×1080 |
| MV238FHM-N10 | BOE | 23.8 | 1920×1080 |
| MV238QUM-N20 | BOE | 23.8 | 3840×2160 |
