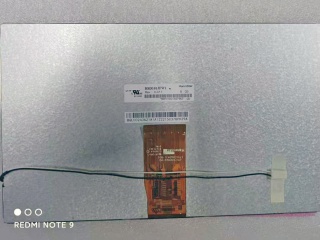

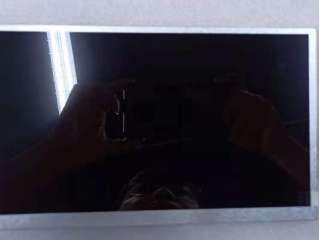

| PartNumber | HSD101JFW1-C11 |
| Brand | HannStar |
| Size | 10.1 |
| Application | Automotive Display |
| Resolution | 1024×600 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Model | HSD101JFW1-C11 |
| Diagonal Size | 10.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×600 [WSVGA] 117PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 222.72(H)×125.28(V) mm |
| Outline Dim. | 235(H)×143(V) ×6.3(D) mm |
| Bezel Area | 226(H)×128.5(V) mm |
| Treatment | Hard coating (3H) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transflective |
| Support Color | 16.2M 45% NTSC |
| Light Source | WLED [6S7P] , 20K hours , W/O Driver |
| Weight | 265/275g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 60 pins FPC |
| Power Supply | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
