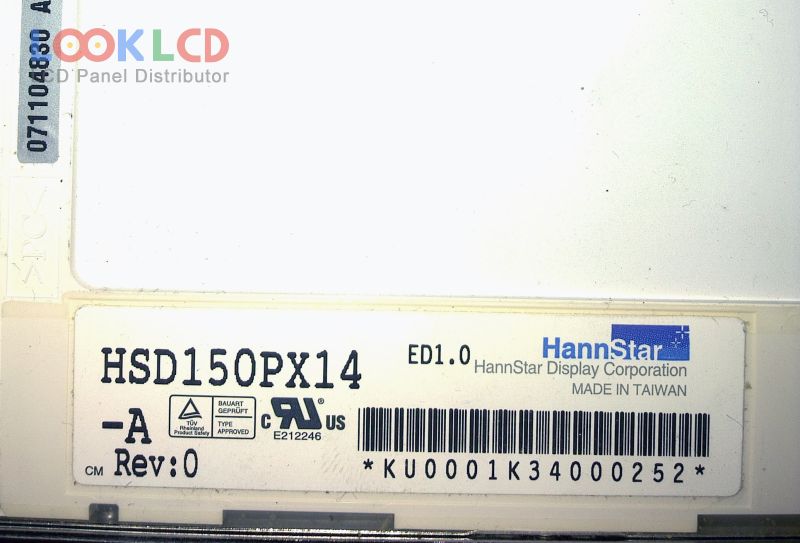

| PartNumber | HSD150PX14-A00 |
| Brand | HannStar |
| Size | 15.0 |
| Application | NBPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 150 cd/m² (Typ.) |
| CR | 250:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | HannStar |
| Panel Model | HSD150PX14-A00 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 317.3×242×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 250:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
