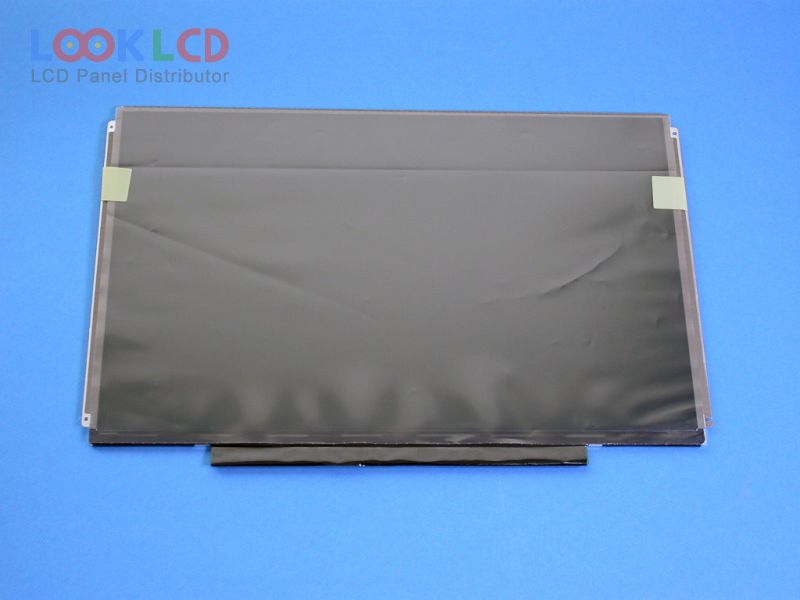

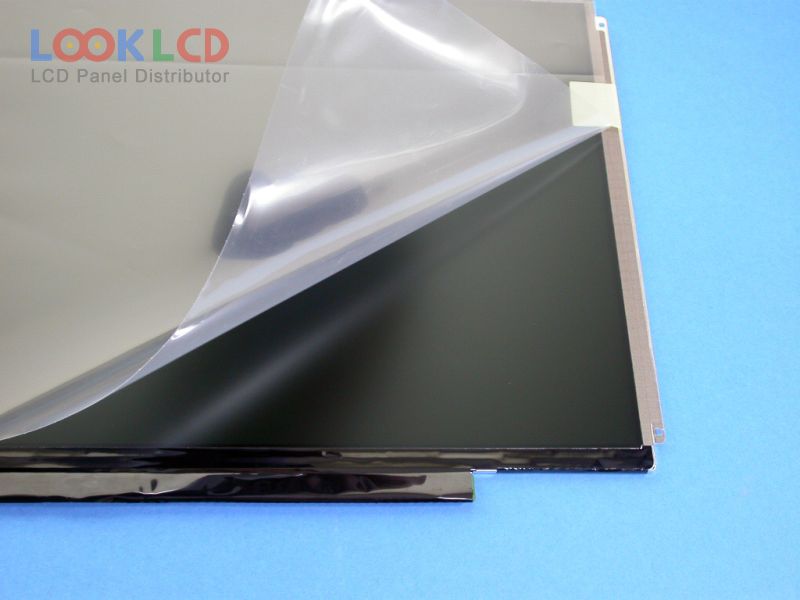

| PartNumber | LP133WX2-TLA2 |
| Brand | LG Display |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP133WX2-TLA2 2 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 286.08×178.8 mm |
| Outline | 304×202.5×3.5 mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 400:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LP133WD1-SLA1 | LG Display | 13.3 | 1600×900 |
| LP133WF1-SPA1 | LG Display | 13.3 | 1920×1080 |
| LP133WF6-SSA1 | LG Display | 13.3 | 1920×1080 |
| LP133WH1-TLC1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-SPA2 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLB2 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLL3 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLM4 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLN3 | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA1 | LG Display | 13.3 | 1280×800 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| LP101WH2-TLA2 | LG Display | 10.1 | 1366×768 |
| LP125WH2-TLB1 | LG Display | 12.5 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LT121SL-105 | Samsung | 12.1 | 800×600 |
| LTN133AT01-003 | Samsung | 13.3 | 1280×800 |
| LTN160AT01-A05 | Samsung | 16.0 | 1366×768 |
| LTN184KT01-J01 | Samsung | 18.4 | 1680×945 |
| N134B6-L04 | Innolux | 13.4 | 1366×768 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
