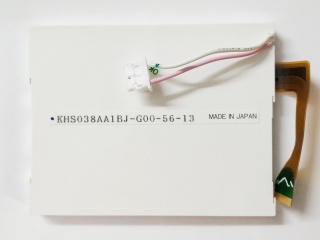

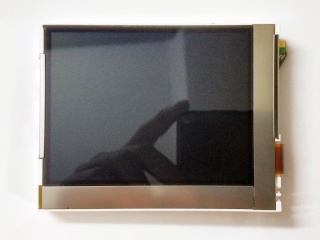

| PartNumber | KHS038AA1BJ-G00 |
| Brand | Kyocera |
| Size | 3.8 |
| Application | Industrial |
| Resolution | 240×320 |
| Composition | LCM, CSTN-LCD |
| Brightness | |
| CR | |
| Colors | Color |
| Backlight | 1 pcs CCFL , No Driver |
| Interface | Parallel |
| Manufacturer | Kyocera |
| Model Name | KHS038AA1BJ-G00 |
| Screen Size | 3.8 inch |
| Screen Type | LCM, CSTN-LCD |
| Pixel Number | 240(RGB)×320 (QVGA) 105PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 57.58 × 76.78 (H×V) |
| Outline(mm) | - |
| Viewing Angle | 50/45/20/30 (Typ.)(CR≥2) |
| Response | 250/150 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | STN |
| Color Depth | Color |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 75Hz |
| Touchscreen | - |
| Signal Type | Parallel Data (1ch, 8-bit) , FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| H380VW01 V2 | AUO | 3.8 | 480×800 |
| KHS038AA1AA-B70R-57-11 | Kyocera | 3.8 | 240×320 |
| LM038QC1R10 | SHARP | 3.8 | 320×240 |
| LQ038B3DD01 | SHARP | 3.8 | 320×480 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| LS038Y3LX01 | SHARP | 3.8 | 480×800 |
| SP10Q010 | KOE | 3.8 | 320×240 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A02E | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
