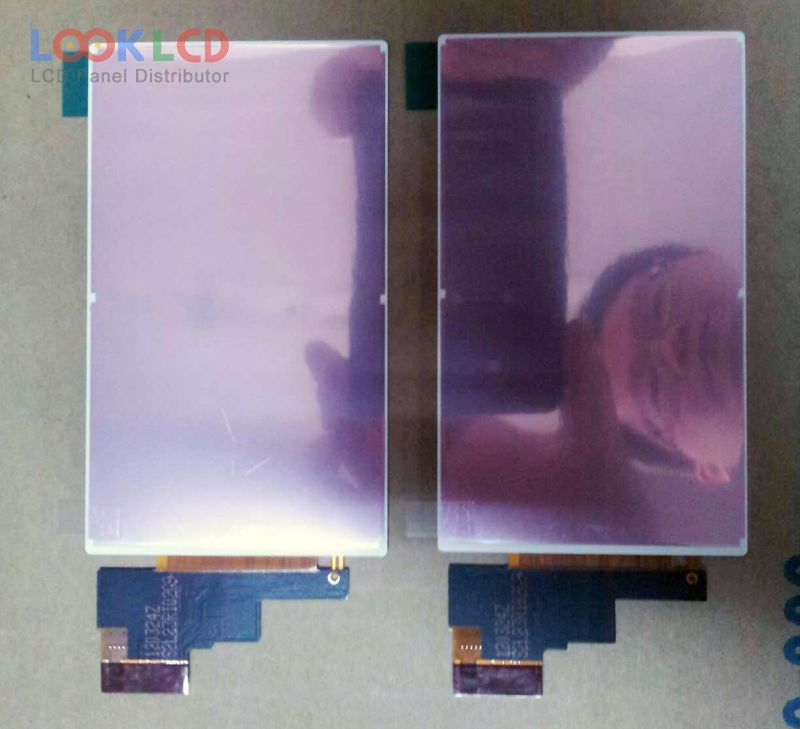

| PartNumber | H380VW01 V2 |
| Brand | AUO |
| Size | 3.8 |
| Application | MPH |
| Resolution | 480(RGB)×800 , WVGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | AUO |
| Panel Model | H380VW01 V2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.8 inch |
| Display Mode | AHVA, Normally Black, Transmissive |
| Active Area | 49.68×82.8 mm |
| Outline | 53.94×116.49 mm |
| Surface | |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 20/15 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| Input Voltage | 1.8/3.0V (Typ.)(IOVDD/AVDD) |
| CMD510TT00-C1 | ORTUSTECH | 3.8 | 320×240 |
| H380VW01 V2 | AUO | 3.8 | 480×800 |
| KCS038AA1AG-G21 | Kyocera | 3.8 | 240×320 |
| LQ038B3DD01 | SHARP | 3.8 | 320×480 |
| LQ038Q7DB03 | SHARP | 3.8 | 240×320 |
| LS038Y7DX01 | SHARP | 3.8 | 480×800 |
| SP10Q010 | KOE | 3.8 | 320×240 |
| TM038QV-67A02E | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
| AMCB004 | Samsung | 2.4 | 240×320 |
| AMS410GJ02-0 | Samsung | 4.1 | 480×800 |
| AMS465GS53 | Samsung | 4.7 | 720×1280 |
| DLC0220KZG | Other | 2.2 | 320×320 |
| H381DLN01.0 | AUO | 3.8 | 1080×1200 |
| LH400WV3-SD04 | LG Display | 4.0 | 480×800 |
| LH470WX6-SD02 | LG Display | 4.7 | 750×1334 |
| LH530QH1-SD01 | LG Display | 5.3 | 1440×2560 |
| TM022HDHT1-05 | Tianma | 2.2 | 240×320 |
| TX06D15VM1EAA | KOE | 2.2 | 176×220 |
