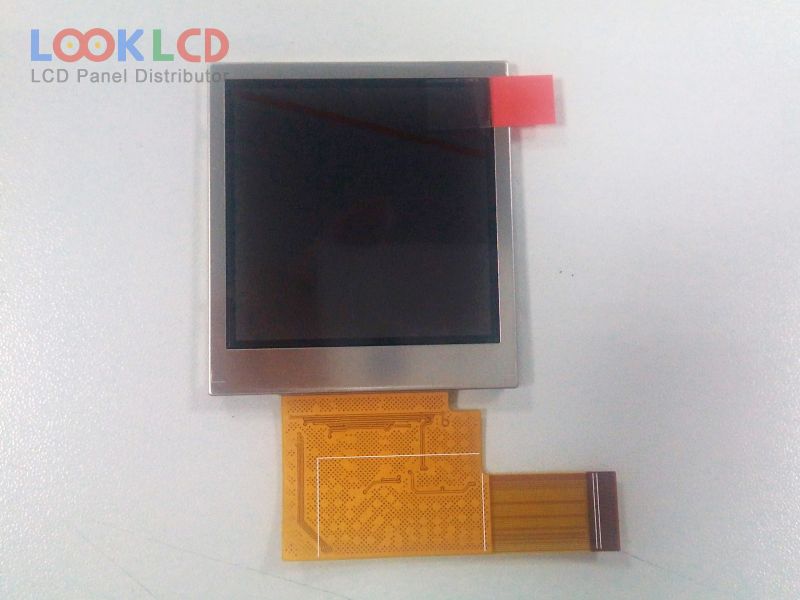

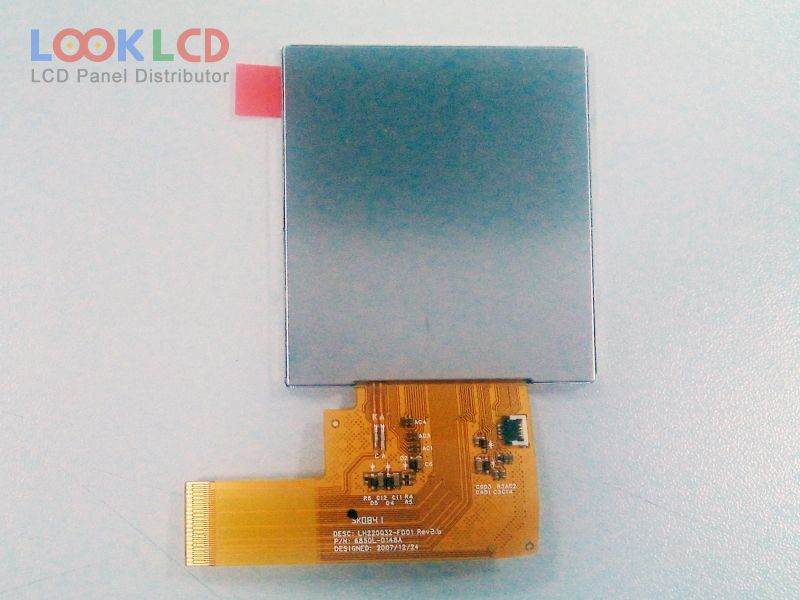

| PartNumber | DLC0220KZG |
| Brand | Other |
| Size | 2.2 |
| Application | MPH |
| Resolution | 320(RGB)×320 |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 120:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | DLC |
| Panel Model | DLC0220KZG |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 2.2 inch |
| Display Mode | ECB, Normally White, Transflective |
| Active Area | 39.36×39.36 mm |
| Outline | 47.4×51.85×2.7 mm |
| Surface | |
| Contrast Ratio | 120:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 3S1PWLEDWithout Driver |

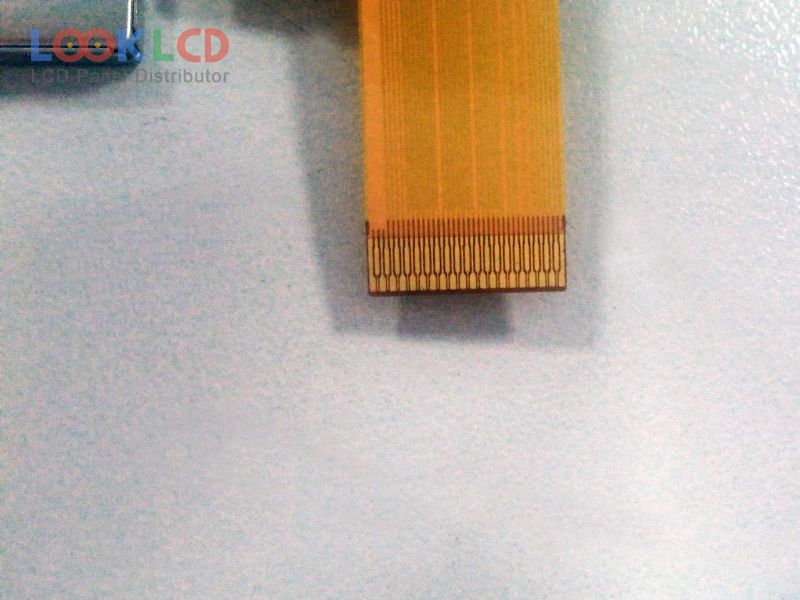

| Signal Interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| Input Voltage | 3.0V (Typ.)(VDD) |
