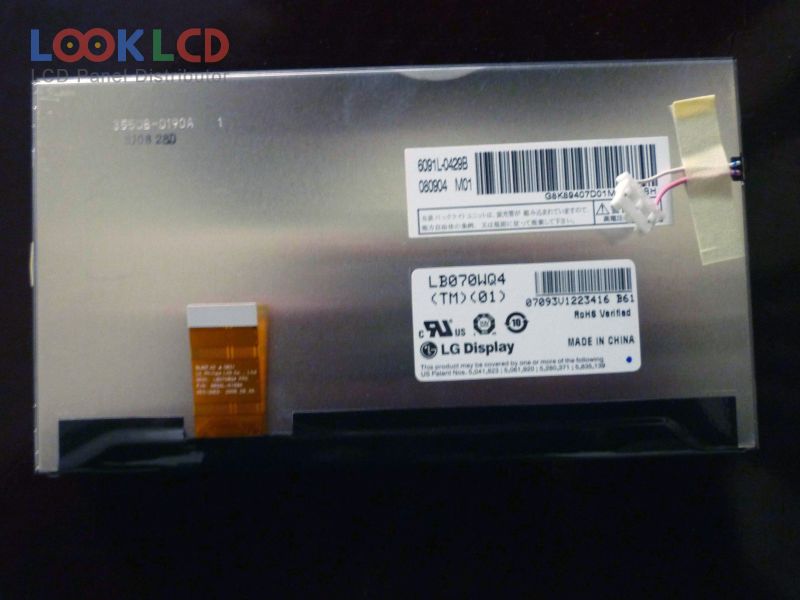

| PartNumber | LB070WQ4-TM01 |
| Brand | LG Display |
| Size | 7.0 |
| Application | CNS |
| Resolution | 480(RGB)×234 |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | Full color |
| Backlight | CCFL |
| Interface | Analog |
| Panel Brand | LG.Philips LCD |
| Panel Model | LB070WQ4-TM01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 156.24×82.368 mm |
| Outline | 167×93×7.8 mm |
| Surface | Antiglare |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | Full color , CIE193145% |
| Response Time | 50/75 (Max.)(Tr/Td) |
| Viewing Angle | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | TFT Specific Analog RGB, 30 pins |
| Input Voltage | 3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
