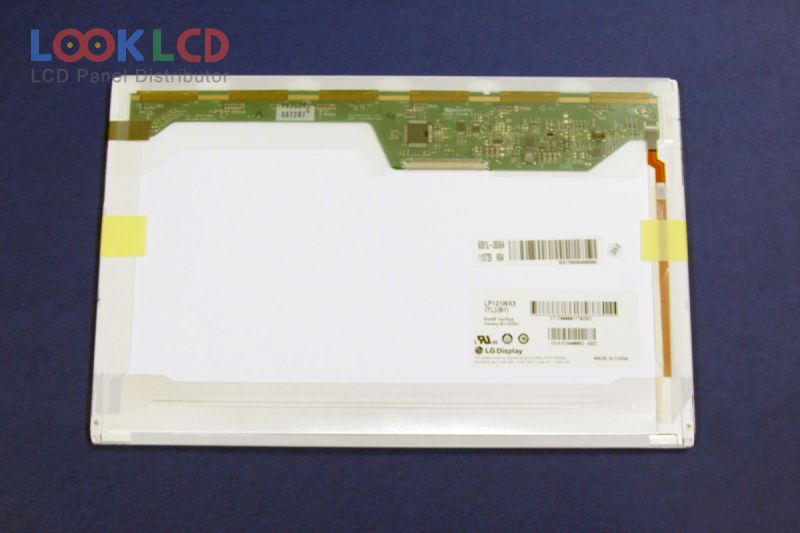

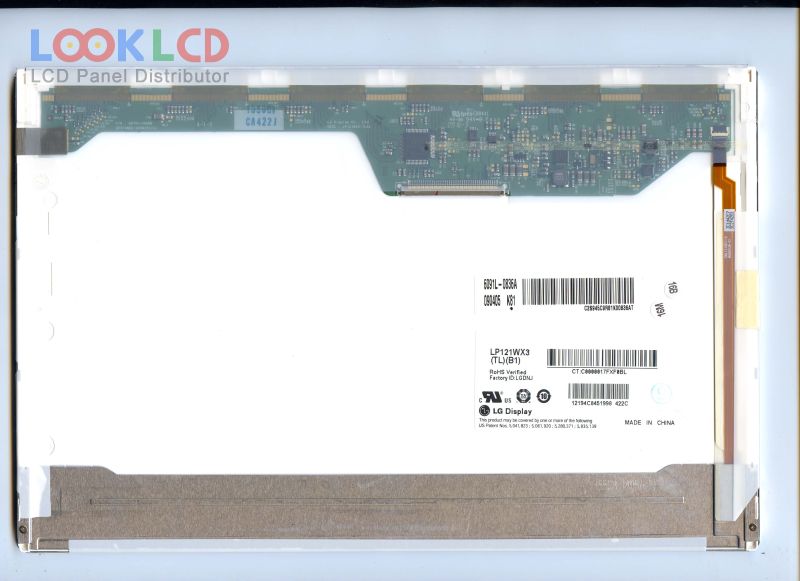

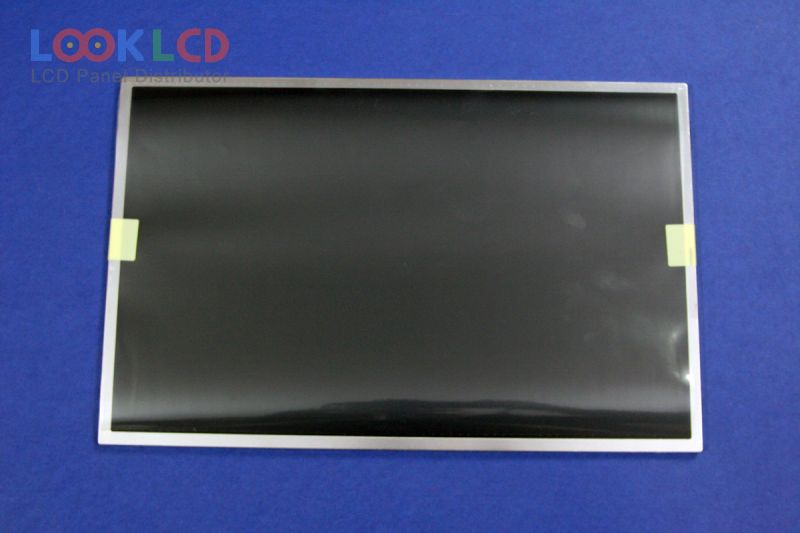

| PartNumber | LP121WX3-TLB1 |
| Brand | LG Display |
| Size | 12.1 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP121WX3-TLB1 0 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 261.12×163.2 mm |
| Outline | 275.8×178.1×5.5 mm |
| Surface | Antiglare |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| A121EW02 V0 | AUO | 12.1 | 1280×800 |
| LP121WX3-TLA1 | LG Display | 12.1 | 1280×800 |
| LP121WX3-TLB1 | LG Display | 12.1 | 1280×800 |
| LP121WX3-TLC1 | LG Display | 12.1 | 1280×800 |
| LP121WX3-TPB1 | LG Display | 12.1 | 1280×800 |
| LP121WX4-TLA1 | LG Display | 12.1 | 1280×800 |
| LQ121X1LH83 | SHARP | 12.1 | 1024×768 |
| LTD121KA0S | TOSHIBA | 12.1 | 1024×768 |
| N121X5-L06 | Innolux | 12.1 | 1024×768 |
| TCG121WXLPAPNN-AN20 | Kyocera | 12.1 | 1280×800 |
| LP133WH2-TLL2 | LG Display | 13.3 | 1366×768 |
| LQ164M1LD4C | SHARP | 16.4 | 1920×1080 |
| LTD111EXDA | TOSHIBA | 11.1 | 1366×768 |
| LTD121EDDZ | TOSHIBA | 12.1 | 1024×768 |
| LTN134AT01-001 | Samsung | 13.4 | 1366×768 |
| LTN154P1-L03 | Samsung | 15.4 | 1680×1050 |
| LTN173KT01-B07 | Samsung | 17.3 | 1600×900 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
| NL6448AC33-10 | NLT | 10.4 | 640×480 |
| NV125QUM-N81 | BOE | 12.5 | 3840×2160 |
