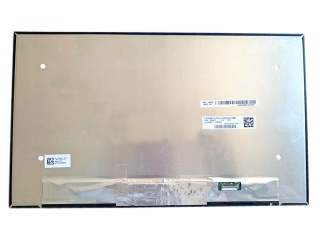

| PartNumber | LP133WF7-SPF2 |
| Brand | LG Display |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | LG Display |
| Panel Size | 13.3" |
| Display Area | 293.76(W)×165.24(H) mm |
| Outline Size | 300.26(W)×177.55(H) ×4.4(D) mm |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 73% NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | LP133WF7-SPF2 (LGD05DC) |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
