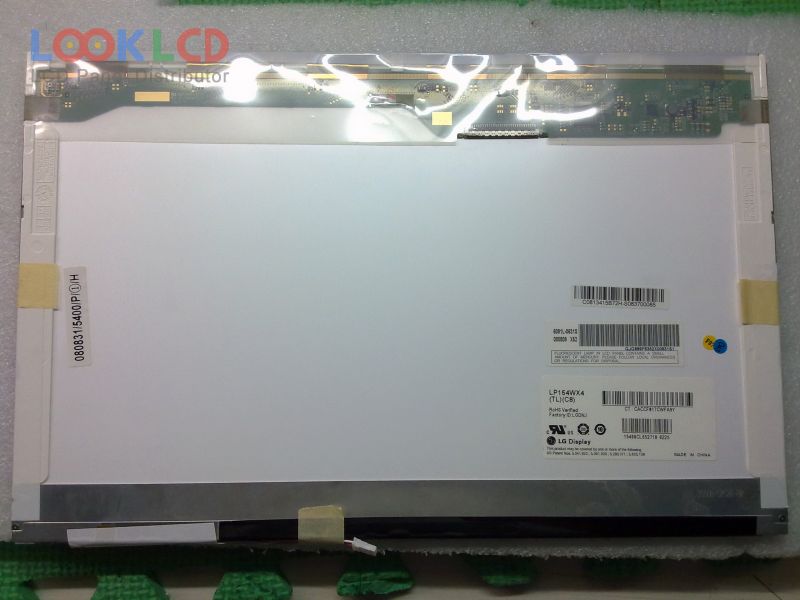

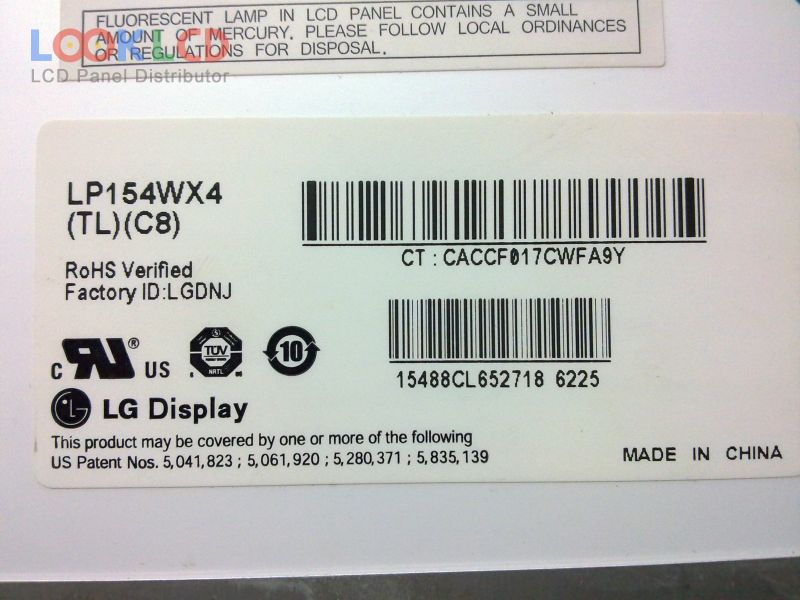

| PartNumber | LP154WX4-TLC8 |
| Brand | LG Display |
| Size | 15.4 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | LG.Philips LCD |
| Panel Model | LP154WX4-TLC8 27 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 331.2×207 mm |
| Outline | 344×222×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
